The question is part of the representation.
Text-conditioned hybrid routing scores 84.03% on V*, compared with 77.31% for image-only routing in the text-encoder ablation. Visual evidence becomes more useful when the model knows what to look for.
A closer look at visual reasoning
Mixture
of Layers.
Dynamic Layer Routing
for Visual Reasoning
The details are already there.
Let the question decide where to look.
HYBRID ROUTINGPATCH × DEPTH
TEXT QUERY“What does the small sign say?”
ABCD
One image. Different patch needs.
Keep each patch’s position. Choose its visual depth.
Image-wide prior1 − β×Patch evidenceβ→ top-k per patch
Each image patch samples its own mixture of vision layers.
Conceptual hybrid top-2 routing, not measured model outputs. The text query conditions a shared image-level prior and patch-level evidence. Their weighted product selects layers 2 and 8 for patch A, 8 and 14 for B, 14 and 20 for C, and 2 and 20 for D. Colored branches combine the selected features within each patch. Dashed branches add that patch’s reserve-layer feature through a learned gate based on global-local disagreement. The result has one output token per original image patch.
Selected features Gated reserve4 patches → 4 tokens
Each patch: (1 − γn) · selected mixture + γn · reserve
Illustrative top-2 routing. Global–local disagreement controls each patch’s reserve gate.
+18.90 pp
V* accuracy over baseline
Vicuna-13B · DINOv2 w/ Txt · hybrid90.34%
V* with two vision encoders
Vicuna-13B · CLIP + DINOv2 w/ Txt0 extra tokens
More depth, same sequence length
Routing preserves the visual token count01 / Motivation
A single layer
can miss the point.
Recognizing a scene isn’t the same as reading a tiny sign inside it.
Vision encoders represent an image at many depths: from localized visual details to broader semantic context. Yet many multimodal models read only the final or penultimate layer, or combine a fixed set of layers for every question.
Mixture of Layers makes that choice adaptive. A text-conditioned router selects and combines intermediate representations, giving the language model visual features that better match the question.
FIXED REPRESENTATIONS
Every question
The same visual layer
MIXTURE OF LAYERS
A specific question
A relevant mix of layers
02 / The method
Let the question
choose the depth.

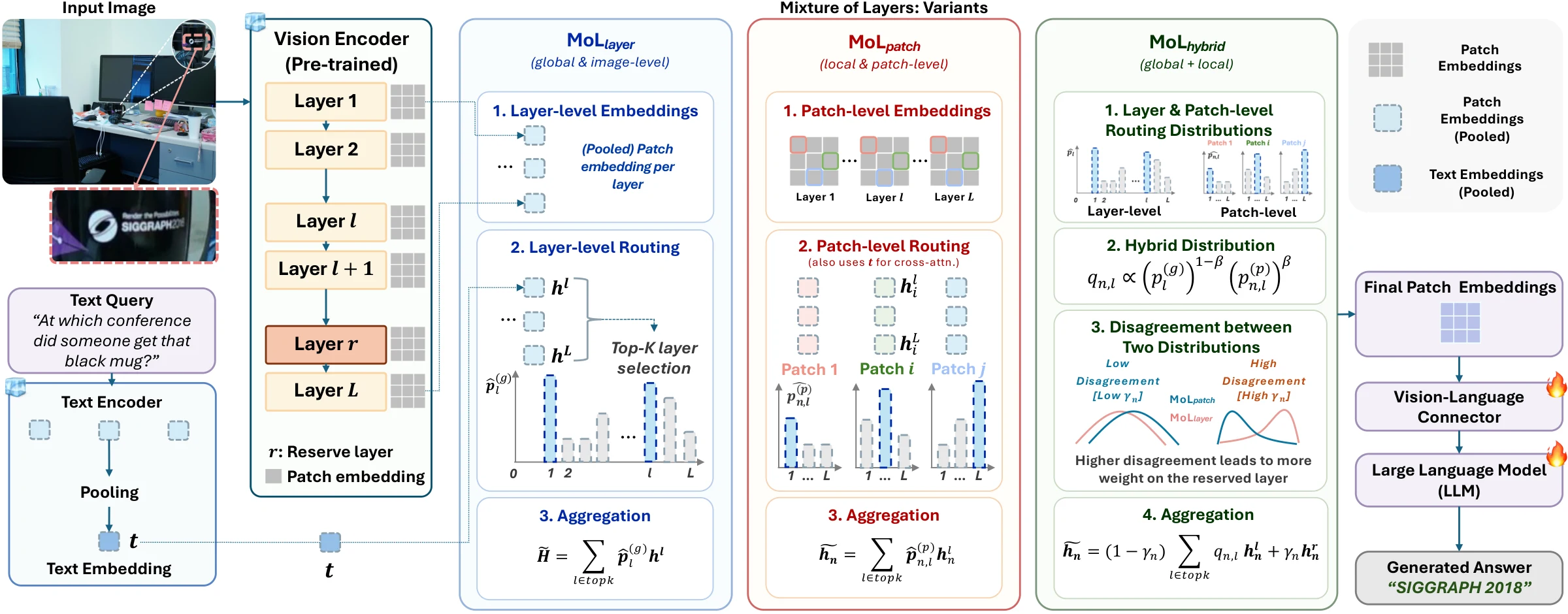

One pre-trained encoder. A family of visual representations. Three ways to route between them.
EXPLORE THE ROUTERConceptual illustration · not model outputs
GLOBAL + LOCAL + RESERVE
The detail and the bigger picture.
Combine image-level and patch-level routing with a weighted product of experts. A learned gate uses their disagreement to blend in a stable reserve layer.
routed patch = (1 − γ) · selected layers + γ · reserve
The reserve is the final or penultimate representation used by the original backbone.
01
Encode
Extract intermediate vision features and an aligned text-query embedding.
02
Route
Score candidate layers against the question and select the top-k representations.
03
Fuse & reason
Mix the selected features, project them into the language space, and answer.
03 / Experiments
Small details.
Measurable gains.
Evaluated across seven fine-grained visual reasoning benchmarks, three language backbones, and multiple vision encoders.
V* BENCHMARK
Accuracy (%) · higher is betterAccuracy, with a closer look.
Scores from the manuscript’s main backbone comparison. Deltas are percentage points, calculated from the displayed scores. Results vary by benchmark and backbone.
Across encoders, tooRoute within.
Route within.
Then combine.
Apply hybrid routing independently to CLIP and DINOv2 w/ Txt, upsample the DINOv2 stream, and fuse the projected features into 576 visual tokens.
Against Interleaved-MoF, this full-system comparison improves V* by 7.99 points. HRBench4K and RealWorldQA decrease; encoder and fusion differences mean this is not a routing-only ablation.
INTERLEAVED-MOF82.35
MoL HYBRID90.34
V* accuracy (%) · Vicuna-13B backbone
04 / Findings & insights
What the layers
tell us.
Routing behavior, receptive fields, and ablations help explain when adaptive visual representations are useful.
01

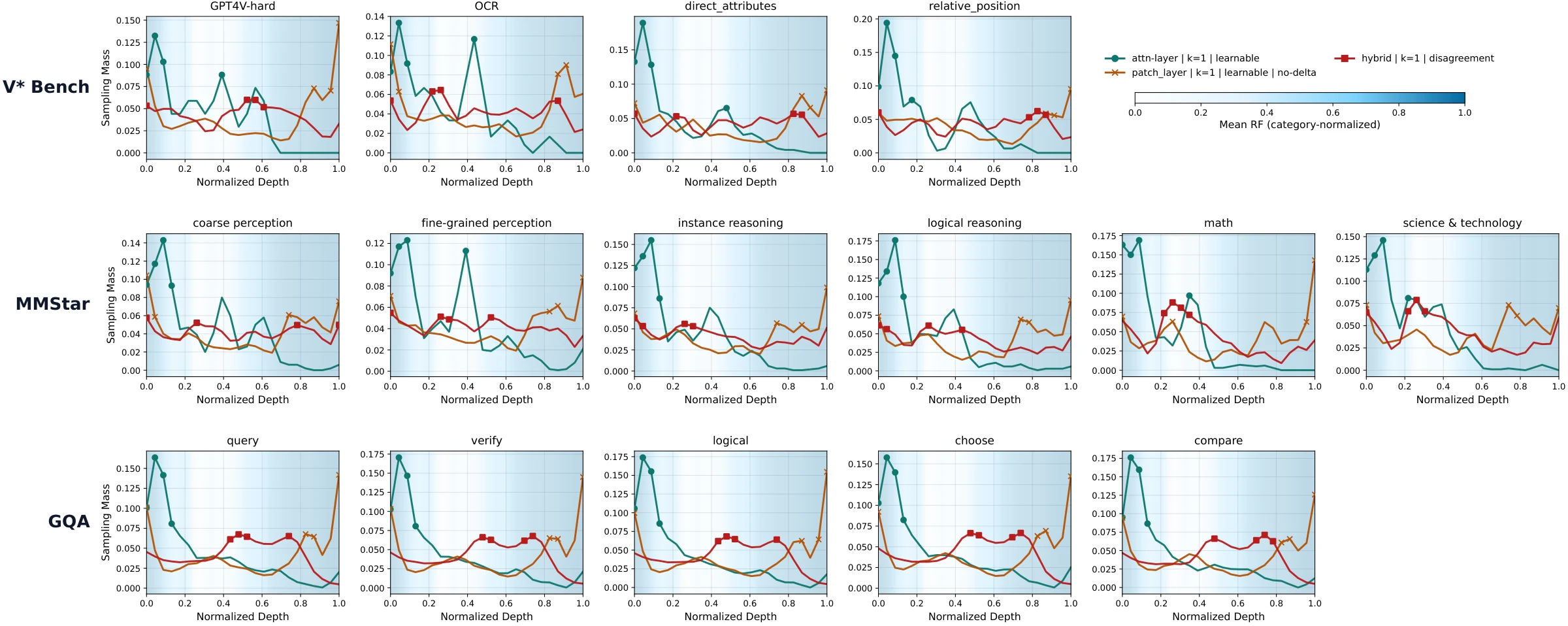

Different routers use different depths.
In the reported CLIP analysis, image-level routing emphasizes early, detail-preserving layers. Patch-level routing places more mass on later, contextualized features. Hybrid routing balances these preferences.
Layer
Patch
Hybrid
Early ← encoder depth → Late
Qualitative summaryMeasured distributions from the paper
A stable fallback matters.
Removing the reserve layer reduces accuracy across all five reported reserve-ablation benchmarks. The largest drop is 5.13 points on HRBench4K (43.88 → 38.75).
−3.00 to −5.13 ppWithout the reserve layer · reported ablation
04
More layers isn’t always better.
Small selections can be enough. In the k ablation, hybrid routing achieves 84.03 on V* at k = 1, versus 76.89 at k = 2 and 67.65 at k = 4. The best k depends on the task and router.
k = 184.03
k = 276.89
k = 467.65
V* accuracy (%) · hybrid k ablation05 / A closer look

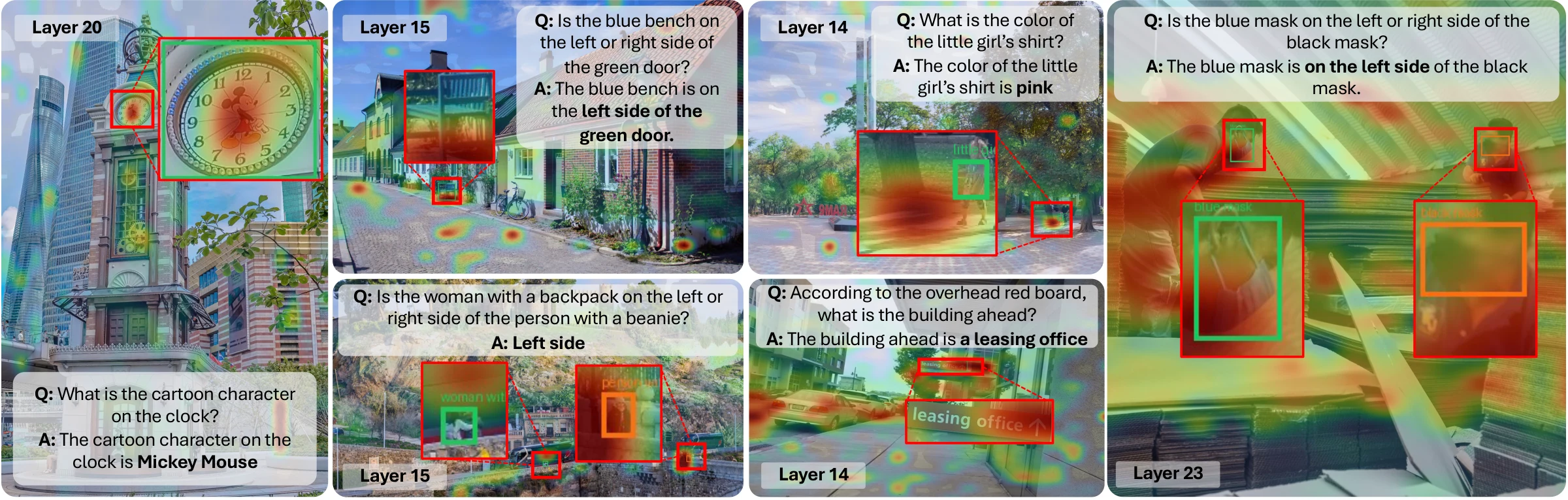

Finding the evidence.
Layer by layer.
Selected-layer self-attention maps highlight text, subtle attributes, and spatial relationships in the paper’s qualitative examples.
Click the figure to inspect it
THE TAKEAWAY
Better visual reasoning can start with
choosing the right representation.
Build on this work
A new perspective
on visual depth.
BibTeX for the current research manuscript. Code will be released soon.
CITATION
@misc{kim2026mixtureoflayers,
title = {Mixture of Layers: Dynamic Layer
Routing for Visual Reasoning},
author = {Kim, Jeonghwan and Stoica, Sofia and
Chung, Jiwan and Blume, Ansel and
Ha, Hyeonjeong and Wang, Zhenhailong and
Dong, Xin Luna and Ji, Heng},
year = {2026},
note = {Research manuscript}
}
